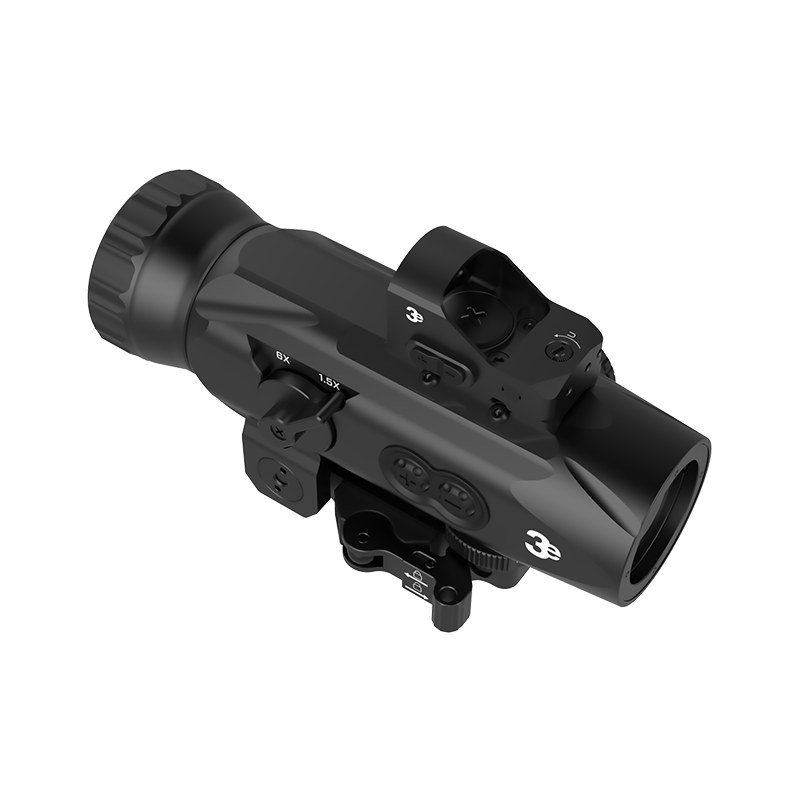

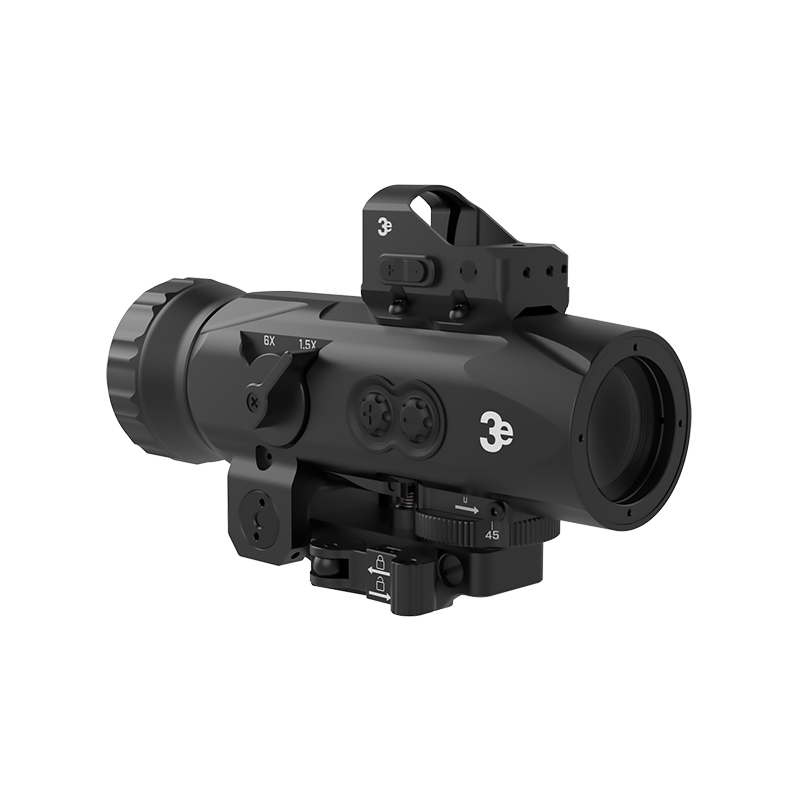

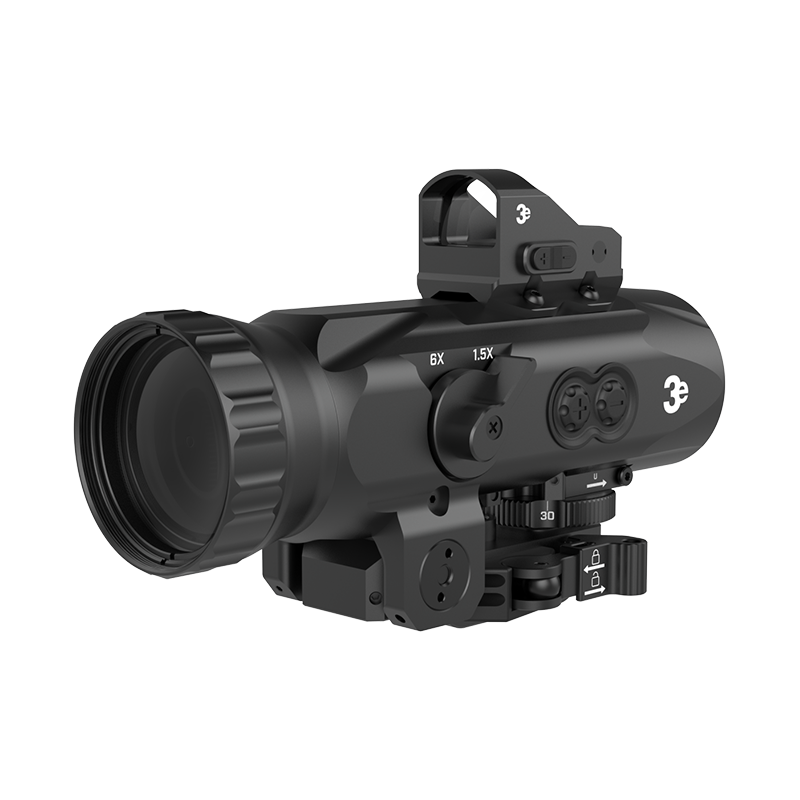

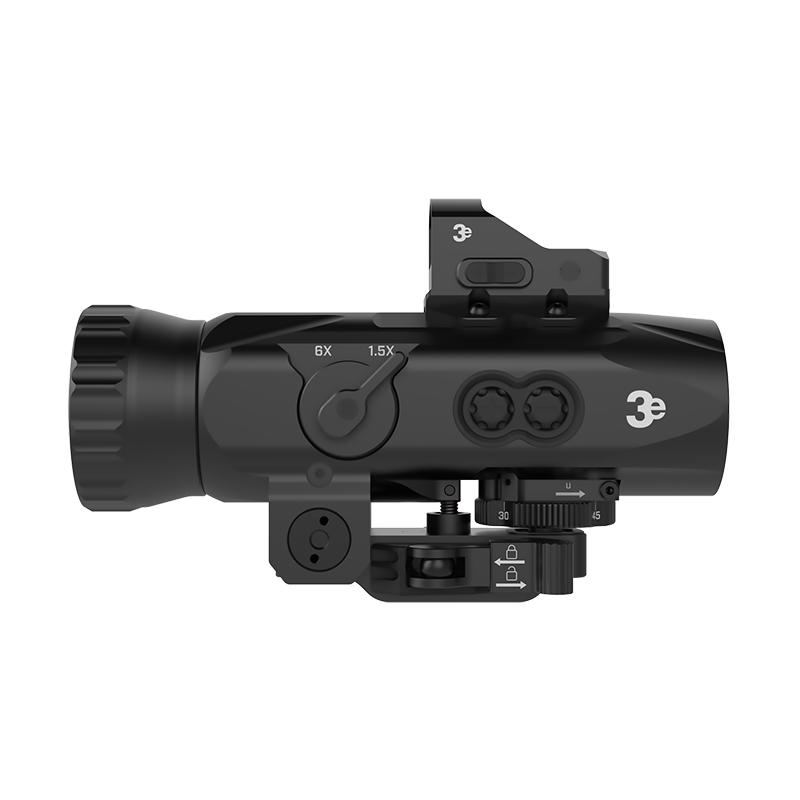

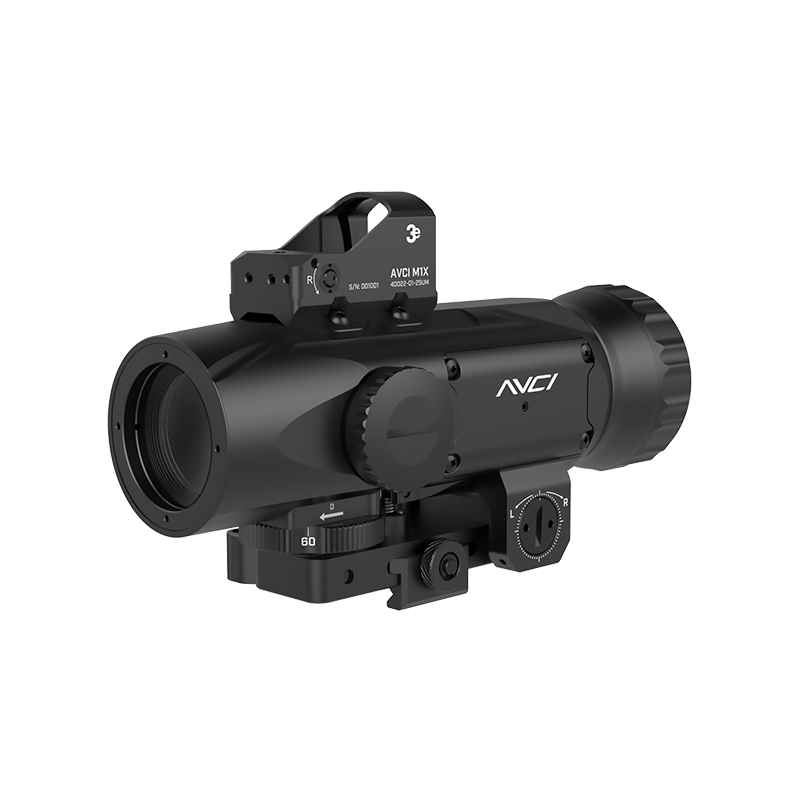

AVCI 1.5x-6x GI+
The AVCI 1.5x-6x integrates a dual-purpose optical design, enabling a swift and effortless transition between different magnification levels. This feature allows the user to proficiently handle both Close Quarters Battle and longer-range situations, balancing speed and precision.
The AVCI 1.5x-6x's wide field of view in 1.5x mode delivers clear imaging for urban combat, while the 6x mode ensures superior accuracy in mid-to-long range shooting. An ultra-bright illuminated reticle augments hit precision, even in dim environments. It is engineered with reticle variations, meticulously designed to be compatible with both 5.56mm and 7.62mm calibers.
Featuring a lockable elevation dial, the AVCI 1.5x-6x embodies reliability at its finest. The incorporated interface further broadens its versatility, enabling integration of a reflex sight if so desired. Alternatively, you may utilize the picatinny interface, thereby enhancing the adaptability to accommodate a wide array of applications.
Crafted with high-strength aluminum, the AVCI 1.5x-6x is both lightweight and robust. It offers consistent performance in harsh conditions, making it a reliable choice across varied combat scenarios.
More About AVCI 1.5x-6x GI+
Overview
The AVCI 1.5x-6x integrates a dual-purpose optical design, enabling a swift and effortless transition between different magnification levels. This feature allows the user to proficiently handle both Close Quarters Battle and longer-range situations, balancing speed and precision.
The AVCI 1.5x-6x's wide field of view in 1.5x mode delivers clear imaging for urban combat, while the 6x mode ensures superior accuracy in mid-to-long range shooting. An ultra-bright illuminated reticle augments hit precision, even in dim environments. It is engineered with reticle variations, meticulously designed to be compatible with both 5.56mm and 7.62mm calibers.
Featuring a lockable elevation dial, the AVCI 1.5x-6x embodies reliability at its finest. The incorporated interface further broadens its versatility, enabling integration of a reflex sight if so desired. Alternatively, you may utilize the picatinny interface, thereby enhancing the adaptability to accommodate a wide array of applications.
Crafted with high-strength aluminum, the AVCI 1.5x-6x is both lightweight and robust. It offers consistent performance in harsh conditions, making it a reliable choice across varied combat scenarios.
Technical Specifications
■ MECHANICAL DATA
▫ Housing Material: Aluminum
▫ Color: Black or FDE
▫ Weight: 735 g (25.92 oz)
▫ Dimensions (WxLxH): 67x170x79 mm (2.64x6.69x3x11in)
▫ Weapon Mount Compatibility: MIL-STD 1913; STANAG 4694
■ OPTICAL DATA
▫ Objective Diameter: 46 mm
▫ Magnification: 1.5x-6x
▫ Field of View (@1x-@4x): 16° - 4°
▫ Exit Pupil: 7.6 mm
▫ Eye Relief: 72 mm
▫ Focal Plane: Second Focal Plane (SFP)
▫ Parallax: Fixed
■ WINDAGE / ELEVATION DIALS
▫ Adjustment Click Value: 1 click 1 cm @100m / 0.1 mil
▫ Adjustment Range: 400+ clicks
▫ Elevation Lock: Yes
■ AVAILABLE RETICLES
▫ DS6-MCR5 Variations
▫ DS6-MCR7 Variations
■ ELECTRICAL DATA
▫ Reticle Illumination: Yes
▫ Illumination Level: Yes - 10 levels
▫ Battery: 1 x CR2032 (3V)
▫ Battery Life: 500+ hours [1]*[2]*
▫ Auto Illumination Shutdown: After 3 hours
■ ENVIRONMENTAL DATA
▫ Operating Temperature Range: -32˚C to +49˚C (-26˚F to +120˚F)
▫ Storage Temperature Range: -40˚C to +71˚C (-40˚F to +160˚F)
▫ Immersion: IP67
▫ Recoil Compatibility: 5.56 mm NATO (.223); 7.62 mm NATO (.308)
Other MIL-STD-810G tests are applicable. Please contact us for detailed information.
■ STANDARD ACCESSORIES [3]*
▫ User and Operating Manual
▫ Lens Cleaning Cloth
▫ Allen Key
▫ Honeycomb
▫ Protection Cover
■ OPTIONAL ACCESSORIES [3]*
▫ Hard Case
▫ Picatinny Rail Kit
▫ Reflex Sight Kit
▫ A1x Reflex Sight
▫ R1x Reflex Sight
▫ V1x Reflex Sight
▫ VW1x Reflex Sight
[1]* Battery life may vary depending on environmental and atmospheric conditions.
[2]* 5th level of illumination is taken as a reference.
[3]* Accessories may vary. Please contact us for detailed information.
Contact 3E for product codes and SKUs.
Download the AVCI 1.5x–6x GI+ datasheet:
